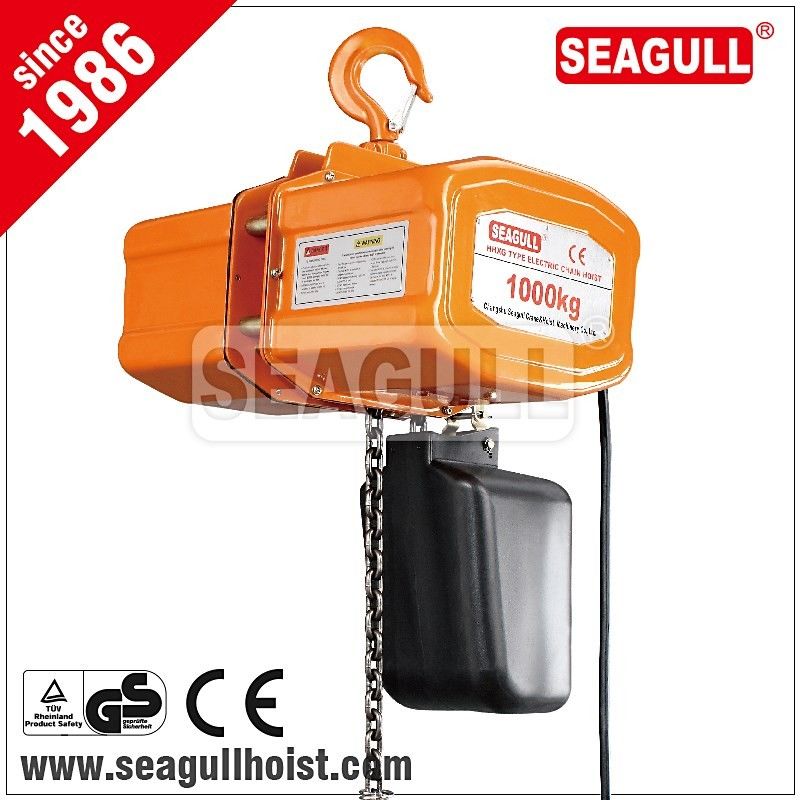

Name: 1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v
Brand: Changshu Seagull Crane&Hoist Machinery Co.,Ltd
SKU: HHXG2
Price: 600.00 USD
Availability: InStock

বাড়ি পণ্য বৈদ্যুতিক শৃঙ্খল উত্তোলন

1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v

পণ্যের বিবরণ:

Place of Origin:	China,Jiangsu
পরিচিতিমুলক নাম:	SEAGULL
সাক্ষ্যদান:	CE
Model Number:	HHXG2

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	50 পিসি
মূল্য:	আলোচনাযোগ্য
Packaging Details:	carton and pallet
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 sets per year

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

শর্ত:	নতুন	ব্যবহার:	নির্মাণ
শক্তির উৎস:	বৈদ্যুতিক	স্লিং টাইপ:	শৃঙ্খল
সর্বোচ্চ উত্তোলন ওজন:	5t	সর্বোচ্চ উত্তোলন উচ্চতা:	12m
পাটা:	এক বছর	রঙ:	ঐচ্ছিক
বিশেষভাবে তুলে ধরা:	electric chain fall , electric chain block

HHXG Electric Chain Hoist

Capacity:0.5-5ton
Lifting speed:1m/min-6.3m/min
Voltage:110-440V
Frequence:50/60Hz

1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v 0

Feafures:
A. Capacity from 500kg to5000kg
B. Quality chain is supplied by FEC JAPAN.
C. Most tensile safety hooks without break.
D. Compact and high efficient motor with heat protection device.
E. Push button is with 24v low voltage to guarantee safety.
F. Limit switch.
G. Limit load device are fitted.
H. CE certified.
I. IP54 protection on electric hoist for dust and water proof protection.

Technical Parameters & Specifications:

HHXG2 SUSPENDED TYPE SINGLE PHASE ELECTRIC CHAIN HOIST
Model		HHXG205	HHXG210	HHXG220	HHXG230	HHXG250
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		5.2	5.2	2.6	1.7	1
Hoist Motor	Output(kw)	0.8	1.2	1.2	1.2	1.2
1-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)

HHXG3 SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
Model		HHXG305	HHXG310	HHXG320	HHXG330	HHXG350
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		6.3	6.3	3.2	2.1	1.3
Hoist Motor	Output(kw)	0.8	1.6	1.6	1.6	1.6
3-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)

HHXG3 DOUBLE SPEED SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
Model		HHXG305B	HHXG310B	HHXG320B	HHXG330B	HHXG350B
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		5.2/1.7	5.2/1.7	2.6/0.85	1.7/0.58	1.0/0.35
Hoist Motor	Output(kw)	0.8/0.25	1.2/0.4	1.2/0.4	1.2/0.4	1.2/0.4
1-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)
